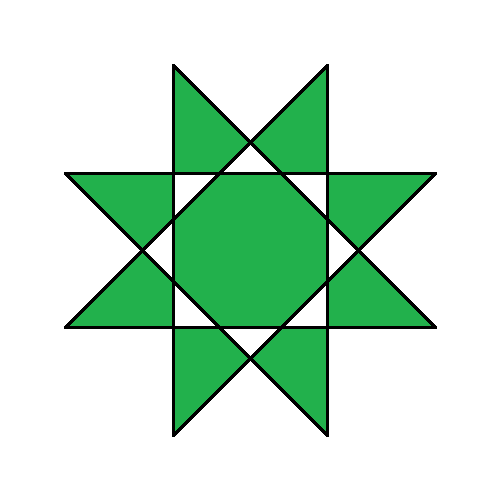

Problem 841: Regular Star Polygons

Mathematical Foundation

Theorem 1 (Area of a Regular Star Polygon). The area of the regular star polygon $\{n/k\}$ inscribed in a circle of radius $r$ is

Proof. Label the $n$ equally spaced points on the circle as $P_0, P_1, \ldots, P_{n-1}$ with $P_j = r(\cos(2\pi j/n),\, \sin(2\pi j/n))$. The star polygon $\{n/k\}$ connects $P_j$ to $P_{j+k \bmod n}$ for each $j$. Since $\gcd(n,k)=1$, this produces a single closed polygon visiting all $n$ vertices.

Decompose the polygon into $n$ triangles $\triangle O P_j P_{j+k}$ where $O$ is the center. Each triangle has two sides of length $r$ (the radii $OP_j$ and $OP_{j+k}$) with included angle $\angle P_j O P_{j+k} = 2\pi k/n$. By the formula for the area of a triangle with two sides and included angle:

Summing over all $n$ triangles yields

Lemma 1 (Count of Valid Star Polygons). For $n \ge 5$, the number of valid values of $k$ (i.e., integers $k$ with $1 < k < n/2$ and $\gcd(n,k)=1$) is

Proof. The integers $k$ with $1 \le k \le n-1$ and $\gcd(n,k)=1$ number $\varphi(n)$ by definition of Euler’s totient. These coprime residues pair off as $(k, n-k)$ since $\gcd(n,k)=\gcd(n,n-k)$ and $k \ne n-k$ (because $n/2$ is either non-integer or not coprime to $n$ for $n > 2$). Each pair has exactly one member in $\{1, \ldots, \lfloor(n-1)/2\rfloor\}$. Thus there are $\varphi(n)/2$ values of $k$ with $1 \le k < n/2$ and $\gcd(n,k)=1$. Excluding $k=1$ (the convex regular polygon, not a star polygon) gives $\varphi(n)/2 - 1$. $\square$

Lemma 2 (Ramanujan Sum Connection). Define the Ramanujan sum $c_n(m) = \sum_{\substack{k=1 \\ \gcd(k,n)=1}}^{n} e^{2\pi i k m/n}$. Then $c_n(1) = \mu(n)$, the Mobius function. Consequently,

since $\mu(n) \in \{-1, 0, 1\} \subset \mathbb{R}$.

Proof. The identity $c_n(1) = \mu(n)$ is classical (see Hardy & Wright, Ch. 16). Since $\mu(n)$ is real, its imaginary part vanishes. The left-hand side is $\operatorname{Im}\!\left(\sum_{\gcd(k,n)=1} e^{2\pi i k/n}\right) = \operatorname{Im}(c_n(1))$. $\square$

Editorial

Optimized version* (sieve-based). We first generate the primes required by the search, then enumerate the admissible combinations and retain only the values that satisfy the final test.

Pseudocode

    total = 0.0
    For n from 5 to N:
        For k from 2 to floor((n-1)/2):
            If gcd(n, k) == 1 then
                total += (n / 2.0) * sin(2 * pi * k / n)
    Return total

Optimized version (sieve-based):

    total = 0.0
    Precompute smallest prime factor via sieve for gcd speedup
    spf = sieve_smallest_prime_factor(N)
    For n from 5 to N:
        For k from 2 to floor((n-1)/2):
            if gcd(n, k) == 1: # O(log n) via Euclidean algorithm
                total += (n / 2.0) * sin(2 * pi * k / n)
    Return total

Complexity Analysis

• Time: $O\!\left(\sum_{n=5}^{N} \frac{\varphi(n)}{2}\right) = O(N^2)$, since $\sum_{n=1}^{N}\varphi(n) = \Theta(N^2)$. Each inner iteration performs one $\gcd$ ($O(\log n)$) and one $\sin$ evaluation ($O(1)$ with standard libraries), so total time is $O(N^2 \log N)$ in the worst case, or $O(N^2)$ treating $\gcd$ as $O(1)$ amortized.
• Space: $O(1)$ auxiliary (or $O(N)$ if a sieve is used for $\gcd$ acceleration).

Answer

#include <bits/stdc++.h>
using namespace std;

/*
 * Problem 841: Regular Star Polygons
 *
 * Sum of areas of all valid star polygons {n/k} inscribed in unit circle.
 * Area({n/k}) = (n/2) * sin(2*pi*k/n)
 * Valid when gcd(n,k) = 1 and 1 < k < n/2.
 */

int main() {
    int N = 10000;
    double total = 0.0;
    const double PI = acos(-1.0);

    for (int n = 3; n <= N; n++) {
        for (int k = 2; k < n / 2 + 1; k++) {
            if (n % 2 == 0 && k == n / 2) continue;
            if (__gcd(n, k) == 1) {
                total += (n / 2.0) * sin(2.0 * PI * k / n);
            }
        }
    }

    // Verify small case: {5/2} pentagram
    double pent = 2.5 * sin(2.0 * PI * 2 / 5);
    assert(abs(pent - 1.46946) < 0.001);

    printf("%.3f\n", total);
    return 0;
}

"""
Problem 841: Regular Star Polygons

Compute the sum of areas of all regular star polygons {n/k} for 3 <= n <= N,
with 1 < k < n/2 and gcd(n,k) = 1, inscribed in a unit circle.

Area of {n/k} = (n/2) * sin(2*pi*k/n).
"""

from math import gcd, sin, pi

# --- Method 1: Direct enumeration ---
def sum_star_areas_direct(N: int) -> float:
    """Sum areas of all valid star polygons up to N points."""
    total = 0.0
    for n in range(3, N + 1):
        for k in range(2, n // 2 + 1):
            if n % 2 == 0 and k == n // 2:
                continue  # degenerate
            if gcd(n, k) == 1:
                total += (n / 2) * sin(2 * pi * k / n)
    return total

# --- Method 2: Using Ramanujan sum identity ---
def sum_star_areas_ramanujan(N: int) -> float:
    """Use the fact that sum over coprime k of sin(2pi*k/n) relates to mu(n)."""
    total = 0.0
    for n in range(3, N + 1):
        # Sum sin(2*pi*k/n) for 1 < k < n/2, gcd(k,n) = 1
        inner = 0.0
        for k in range(2, n // 2 + 1):
            if n % 2 == 0 and k == n // 2:
                continue
            if gcd(n, k) == 1:
                inner += sin(2 * pi * k / n)
        total += (n / 2) * inner
    return total

# --- Method 3: Count by phi(n) ---
def count_star_polygons(N: int):
    """Count total number of valid star polygons."""
    count = 0
    for n in range(3, N + 1):
        for k in range(2, n // 2 + 1):
            if n % 2 == 0 and k == n // 2:
                continue
            if gcd(n, k) == 1:
                count += 1
    return count

# --- Verify methods agree ---
for N in range(3, 30):
    a = sum_star_areas_direct(N)
    b = sum_star_areas_ramanujan(N)
    assert abs(a - b) < 1e-10, f"Mismatch at N={N}: {a} vs {b}"

print("Verification passed!")

# Compute answer
N = 10000
answer = sum_star_areas_direct(N)
print(f"S({N}) = {answer:.3f}")
