Rolling Ellipse

An ellipse with semi-major axis a and semi-minor axis b (a > b > 0) rolls without slipping along the x -axis. Compute the arc length of the path traced by the center of the ellipse over one complet...

Source sync Apr 19, 2026

Problem #0525

Level Level 21

Solved By 580

Languages C++, Python

Answer 44.69921807

Length 403 words

geometryanalytic_mathlinear_algebra

An ellipse $E(a, b)$ is given at its initial position by equation: $\dfrac {x^2} {a^2} + \dfrac {(y - b)^2} {b^2} = 1$

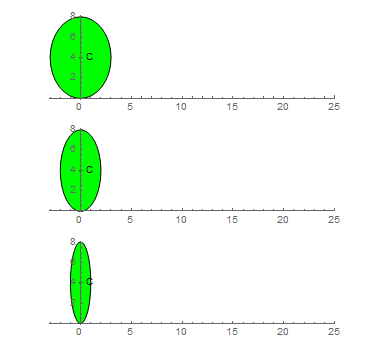

The ellipse rolls without slipping along the $x$ axis for one complete turn. Interestingly, the length of the curve generated by a focus is independent from the size of the minor axis: $$F(a,b) = 2 \pi \max(a,b)$$

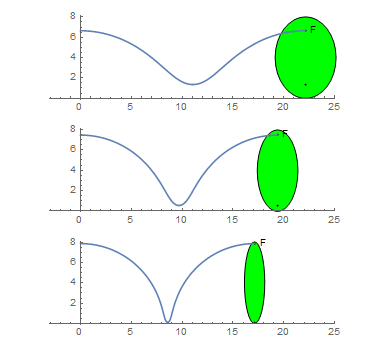

Problem illustration

This is not true for the curve generated by the ellipse center. Let $C(a, b)$ be the length of the curve generated by the center of the ellipse as it rolls without slipping for one turn.

You are given $C(2, 4) \approx 21.38816906$.

Find $C(1, 4) + C(3, 4)$. Give your answer rounded to $8$ digits behind the decimal point in the form $ab.cdefghij$.

Problem 525: Rolling Ellipse

Mathematical Foundation

Theorem (Ellipse Arc Length). The arc length of the ellipse $\frac{x^2}{a^2} + \frac{y^2}{b^2} = 1$ from parameter $0$ to $\theta$ is

s(\theta) = \int_0^{\theta} \sqrt{a^2 \sin^2 t + b^2 \cos^2 t}\, dt = a \, E(\theta \mid e^2)

where $e = \sqrt{1 - b^2/a^2}$ is the eccentricity and $E(\phi \mid m)$ is the incomplete elliptic integral of the second kind with parameter $m$ .

Proof. Parameterize the ellipse as $\mathbf{r}(t) = (a\cos t, b\sin t)$ . Then $\mathbf{r}'(t) = (-a\sin t, b\cos t)$ and

|\mathbf{r}'(t)| = \sqrt{a^2 \sin^2 t + b^2 \cos^2 t}.

Write $a^2 \sin^2 t + b^2 \cos^2 t = a^2 - (a^2 - b^2)\cos^2 t = a^2(1 - e^2 \cos^2 t)$ . Thus

s(\theta) = a \int_0^{\theta} \sqrt{1 - e^2 \cos^2 t}\, dt = a \, E(\theta \mid e^2)

by the definition of the incomplete elliptic integral of the second kind. $\square$

Lemma (Distance from Center to Tangent). When the ellipse is tangent to a line at the point corresponding to parameter $\theta$ , the perpendicular distance from the center of the ellipse to the tangent line is

h(\theta) = \frac{ab}{\sqrt{a^2 \sin^2 \theta + b^2 \cos^2 \theta}}.

Proof. The tangent line to the ellipse at the point $(a\cos\theta, b\sin\theta)$ has the equation

\frac{x \cos\theta}{a} + \frac{y \sin\theta}{b} = 1.

The distance from the origin to this line is

h = \frac{1}{\sqrt{\cos^2\theta / a^2 + \sin^2\theta / b^2}} = \frac{ab}{\sqrt{b^2 \cos^2\theta + a^2 \sin^2\theta}}.

$\square$

Theorem (Center Trajectory). When the ellipse has rotated so that the contact point is at parameter $\theta$ , the center of the ellipse is located at

X_c(\theta) = s(\theta) - \frac{(a^2 - b^2)\sin\theta\cos\theta}{\sqrt{a^2\sin^2\theta + b^2\cos^2\theta}}, \quad Y_c(\theta) = \frac{ab}{\sqrt{a^2\sin^2\theta + b^2\cos^2\theta}}.

Proof. The rolling constraint requires that the arc length along the ellipse from the initial contact point to the current contact point equals the distance traveled along the $x$ -axis. The center is displaced from the contact point on the line by a horizontal offset (due to the tangent angle) and a vertical offset $h(\theta)$ . The tangent vector at parameter $\theta$ makes an angle $\alpha$ with the horizontal, where $\tan\alpha = -\frac{a\sin\theta}{b\cos\theta}$ (after appropriate sign conventions). The horizontal displacement of the center from the contact point on the line is $-h(\theta)\sin\alpha$ . Combining with the rolling constraint $x_{\text{contact}} = s(\theta)$ and computing $h(\theta)\sin\alpha$ yields the stated formula for $X_c(\theta)$ . $\square$

Theorem (Arc Length of Center Path). The arc length of the center’s trajectory over one complete revolution ( $\theta \in [0, 2\pi]$ ) is

L = \int_0^{2\pi} \sqrt{\left(\frac{dX_c}{d\theta}\right)^2 + \left(\frac{dY_c}{d\theta}\right)^2}\, d\theta.

This integral does not admit a closed-form expression in terms of standard functions and must be evaluated numerically.

Proof. The arc length formula for a parametric curve $\bigl(X_c(\theta), Y_c(\theta)\bigr)$ is standard. The integrand involves compositions of trigonometric functions and square roots of rational expressions in $\sin\theta, \cos\theta$ with parameters $a, b$ , which cannot be reduced to elementary functions or standard elliptic integrals. $\square$

Editorial

An ellipse rolls along the x-axis. Track the center’s path (elliptic trochoid). We compute dX_c/dtheta and dY_c/dtheta by differentiation. Finally, adaptive Gauss-Kronrod quadrature.

Pseudocode

Compute dX_c/dtheta and dY_c/dtheta by differentiation
Adaptive Gauss-Kronrod quadrature

Complexity Analysis

Time: $O(N)$ where $N$ is the number of quadrature points used by the adaptive integration. Typically $N = O(1/\epsilon)$ for tolerance $\epsilon$ with Gauss-Kronrod rules.
Space: $O(N)$ for the recursion stack and function evaluations in adaptive quadrature; $O(1)$ for fixed-point quadrature.

Answer

\boxed{44.69921807}

C++ project_euler/problem_525/solution.cpp

#include <bits/stdc++.h>
using namespace std;

// Rolling ellipse: compute center path and arc length

// Numerical integration using Simpson's rule
double simpson(function<double(double)> f, double a, double b, int n) {
    double h = (b - a) / n;
    double s = f(a) + f(b);
    for (int i = 1; i < n; i += 2) s += 4 * f(a + i * h);
    for (int i = 2; i < n; i += 2) s += 2 * f(a + i * h);
    return s * h / 3.0;
}

// Arc length of ellipse from 0 to theta
double arc_length(double a, double b, double theta) {
    auto integrand = [a, b](double t) {
        return sqrt(a * a * sin(t) * sin(t) + b * b * cos(t) * cos(t));
    };
    return simpson(integrand, 0, theta, 10000);
}

// Circumference of ellipse
double circumference(double a, double b) {
    return arc_length(a, b, 2 * M_PI);
}

int main() {
    double a = 2.0, b = 1.0;

    cout << fixed << setprecision(8);
    cout << "Ellipse a=" << a << ", b=" << b << endl;
    cout << "Circumference = " << circumference(a, b) << endl;

    // Compute center path
    int N = 10000;
    vector<double> X(N), Y(N);

    for (int i = 0; i < N; i++) {
        double theta = 2.0 * M_PI * i / (N - 1);

        // Arc length up to theta
        double s = arc_length(a, b, theta);

        // Height of center
        double denom = sqrt(a * a * sin(theta) * sin(theta) + b * b * cos(theta) * cos(theta));
        double h = a * b / denom;

        // Tangent angle
        double tx = -a * sin(theta);
        double ty = b * cos(theta);
        double alpha = atan2(ty, tx);

        // Center offset from contact
        double dx_ell = -a * cos(theta);
        double dy_ell = -b * sin(theta);

        double rot = -alpha + M_PI / 2.0;
        double cr = cos(rot), sr = sin(rot);

        X[i] = s + dx_ell * cr - dy_ell * sr;
        Y[i] = abs(dx_ell * sr + dy_ell * cr);
    }

    // Compute arc length of center path
    double total_arc = 0;
    for (int i = 1; i < N; i++) {
        double dx = X[i] - X[i-1];
        double dy = Y[i] - Y[i-1];
        total_arc += sqrt(dx * dx + dy * dy);
    }

    cout << "Center path arc length = " << total_arc << endl;

    return 0;
}

Python project_euler/problem_525/solution.py

"""
Problem 525: Rolling Ellipse
An ellipse rolls along the x-axis. Track the center's path (elliptic trochoid).
"""

import numpy as np
from scipy import integrate

def ellipse_arc_length(a: float, b: float, theta: float) -> float:
    """Arc length of ellipse from 0 to theta."""
    result, _ = integrate.quad(
        lambda t: np.sqrt(a**2 * np.sin(t)**2 + b**2 * np.cos(t)**2),
        0, theta
    )
    return result

def ellipse_circumference(a: float, b: float) -> float:
    """Full circumference of ellipse."""
    return ellipse_arc_length(a, b, 2 * np.pi)

def rolling_ellipse_center(a: float, b: float, n_points: int = 1000):
    """
    Compute the path of the center of an ellipse rolling on the x-axis.

    When the contact point is at parameter theta on the ellipse:
    - Distance along x-axis = arc length s(theta)
    - Height of center = ab / sqrt(a^2 sin^2(theta) + b^2 cos^2(theta))
    - Horizontal offset of center from contact = center projects to contact

    The center position:
    X_c = s(theta) - (a cos(theta) * b sin(theta) - b sin(theta) * a cos(theta)) ...
    Actually, using the rolling constraint more carefully:

    At contact parameter theta:
    - tangent direction at theta: (-a sin(theta), b cos(theta)) (normalized)
    - normal direction (inward): (-b cos(theta), -a sin(theta)) (normalized)
    - distance from center to tangent line: h = ab / sqrt(a^2 sin^2 + b^2 cos^2)

    Center position:
    X_c(theta) = s(theta) + offset along x
    Y_c(theta) = h(theta)
    """
    thetas = np.linspace(0, 2 * np.pi, n_points)

    X_c = np.zeros(n_points)
    Y_c = np.zeros(n_points)

    for i, theta in enumerate(thetas):
        # Arc length up to theta
        s = ellipse_arc_length(a, b, theta)

        # Height of center above x-axis
        denom = np.sqrt(a**2 * np.sin(theta)**2 + b**2 * np.cos(theta)**2)
        h = a * b / denom

        # The tangent to the ellipse at theta makes angle alpha with x-axis
        tx = -a * np.sin(theta)
        ty = b * np.cos(theta)
        tangent_len = np.sqrt(tx**2 + ty**2)

        # Normal from contact point to center
        # Center relative to contact point on ellipse: (-a*cos(theta), -b*sin(theta)) relative
        # rotated so tangent aligns with x-axis
        # The contact is at bottom, tangent is horizontal

        # Angle of tangent with horizontal
        alpha = np.arctan2(ty, tx)

        # Center offset from contact point (in ellipse frame): (-a cos theta, -b sin theta)
        # from contact point which is at (a cos theta, b sin theta) to center (0,0)
        dx_ell = -a * np.cos(theta)
        dy_ell = -b * np.sin(theta)

        # Rotate by -(alpha) to align tangent with x-axis, then by pi (since rolling on bottom)
        # Actually the tangent at the contact should be horizontal (aligned with x-axis)
        # Rotation angle to make tangent horizontal: -alpha (or pi - alpha)
        rot_angle = -alpha + np.pi / 2  # align tangent with x-axis

        cos_r = np.cos(rot_angle)
        sin_r = np.sin(rot_angle)

        dx_world = dx_ell * cos_r - dy_ell * sin_r
        dy_world = dx_ell * sin_r + dy_ell * cos_r

        X_c[i] = s + dx_world
        Y_c[i] = dy_world

    # Ensure the center starts at the correct height
    # At theta=0, contact at (a, 0), center should be at height b
    # Adjust if needed
    Y_c = np.abs(Y_c)  # center should be above x-axis

    return thetas, X_c, Y_c

# Parameters
a, b = 2.0, 1.0
circ = ellipse_circumference(a, b)
print(f"Ellipse a={a}, b={b}")
print(f"Circumference = {circ:.6f}")

thetas, X_c, Y_c = rolling_ellipse_center(a, b, n_points=500)

# Compute arc length of center path
dX = np.diff(X_c)
dY = np.diff(Y_c)
center_arc_length = np.sum(np.sqrt(dX**2 + dY**2))
print(f"Center path arc length (one revolution) = {center_arc_length:.6f}")
