Problem 215: Crack-free Walls

Mathematical Development

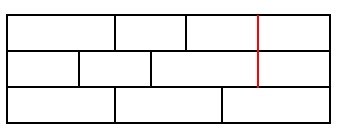

Definition. A row tiling of width $w$ is an ordered sequence of bricks of width 2 or 3 whose widths sum to $w$. The crack set $C(r)$ of a row tiling $r$ is the set of interior partial sums, namely the joint positions between consecutive bricks, excluding 0 and $w$.

Theorem 1 (Consecutive-layer characterization). A wall with rows $r_1, \ldots, r_h$ is crack-free if and only if

Proof. This is exactly the condition stated in the problem: no crack position may line up in two consecutive layers. A position $x$ lines up between rows $r_i$ and $r_{i+1}$ precisely when $x \in C(r_i) \cap C(r_{i+1})$. $\square$

Lemma 1 (Row tiling count). The number of row tilings of width 32 with bricks of width 2 and 3 equals

over all $(a, b) \in \mathbb{Z}_{\geq 0}^2$ satisfying $2a + 3b = 32$. The valid pairs are

Proof. A tiling with $a$ bricks of width 2 and $b$ bricks of width 3 is an ordering of $a+b$ objects with $a$ identical 2-bricks and $b$ identical 3-bricks. The number of such orderings is $\binom{a+b}{a}$. The width equation gives the listed pairs. $\square$

Theorem 2 (Dynamic programming on the compatibility graph). Let $R$ be the set of all row tilings. Define $f(r, k)$ as the number of crack-free walls of height $k$ whose top row is $r$. Then

• Base case: $f(r, 1) = 1$ for all $r \in R$.
• Recurrence: $$f(r, k) = \sum_{\substack{r' \in R \\ C(r) \cap C(r') = \emptyset}} f(r', k-1).$$
• Answer: $$\sum_{r \in R} f(r, 10).$$

Proof. A valid wall of height $k$ ending in row $r$ is obtained by taking a valid wall of height $k-1$ ending in some compatible row $r'$ and placing $r$ above it. Every valid wall arises uniquely in this way. $\square$

Editorial

The geometry disappears once each row is represented by its crack positions. A row is compatible with another row exactly when their crack sets are disjoint, so the wall problem becomes a path-counting problem in a finite compatibility graph whose vertices are the possible row tilings.

That graph is small enough to build explicitly. After generating all width-32 rows, precompute which pairs are compatible. Then dynamic programming over the wall height counts how many ways there are to end with each possible top row. Summing those counts after 10 layers gives the total number of crack-free walls.

Pseudocode

Generate every row tiling of width 32.
For each row, store the set or bitmask of its crack positions.

Build the compatibility list:
    row i is adjacent to row j
    if their crack sets are disjoint.

Set dp[i] = 1 for every row i, representing walls of height 1.

Repeat 9 times:
    Create a new array next filled with 0.
    For each row i:
        For each compatible predecessor j of row i:
            next[i] += dp[j]
    Replace dp by next.

Return the sum of all entries of dp.

Complexity Analysis

Let $m$ be the number of width-32 row tilings.

• Time: $O(m^2)$ to build compatibility, then $O(10m^2)$ for the height DP.
• Space: $O(m^2)$ for the compatibility graph and $O(m)$ for the DP arrays.

Answer

#include <bits/stdc++.h>
using namespace std;

int W = 32;
int H = 10;

vector<vector<int>> rows; // each row is a set of crack positions

void generate(int pos, vector<int>& cracks) {
    if (pos == W) {
        rows.push_back(cracks);
        return;
    }
    // Try placing a 2-brick
    if (pos + 2 <= W) {
        if (pos + 2 < W) cracks.push_back(pos + 2);
        generate(pos + 2, cracks);
        if (pos + 2 < W) cracks.pop_back();
    }
    // Try placing a 3-brick
    if (pos + 3 <= W) {
        if (pos + 3 < W) cracks.push_back(pos + 3);
        generate(pos + 3, cracks);
        if (pos + 3 < W) cracks.pop_back();
    }
}

int main() {
    vector<int> cracks;
    generate(0, cracks);

    int m = rows.size();

    // Convert crack positions to bitmask for fast compatibility check
    vector<unsigned int> mask(m, 0);
    for (int i = 0; i < m; i++) {
        for (int c : rows[i]) {
            mask[i] |= (1u << c);
        }
    }

    // Build compatibility list
    vector<vector<int>> compat(m);
    for (int i = 0; i < m; i++) {
        for (int j = 0; j < m; j++) {
            if ((mask[i] & mask[j]) == 0) {
                compat[i].push_back(j);
            }
        }
    }

    // DP
    vector<long long> dp(m, 1); // height 1: each row has 1 way

    for (int h = 2; h <= H; h++) {
        vector<long long> ndp(m, 0);
        for (int i = 0; i < m; i++) {
            for (int j : compat[i]) {
                ndp[i] += dp[j];
            }
        }
        dp = ndp;
    }

    long long answer = 0;
    for (int i = 0; i < m; i++) {
        answer += dp[i];
    }

    cout << answer << endl;
    return 0;
}

def solve():
    W = 32
    H = 10

    # Generate all row tilings as sets of crack positions
    rows = []

    def generate(pos, cracks):
        if pos == W:
            rows.append(frozenset(cracks))
            return
        # Try 2-brick
        if pos + 2 <= W:
            new_cracks = cracks + ([pos + 2] if pos + 2 < W else [])
            generate(pos + 2, new_cracks)
        # Try 3-brick
        if pos + 3 <= W:
            new_cracks = cracks + ([pos + 3] if pos + 3 < W else [])
            generate(pos + 3, new_cracks)

    generate(0, [])
    m = len(rows)

    # Build compatibility: two rows are compatible if they share no crack position
    compat = [[] for _ in range(m)]
    for i in range(m):
        for j in range(m):
            if rows[i].isdisjoint(rows[j]):
                compat[i].append(j)

    # DP: dp[i] = number of walls of current height ending with row i
    dp = [1] * m  # height 1

    for h in range(2, H + 1):
        ndp = [0] * m
        for i in range(m):
            for j in compat[i]:
                ndp[i] += dp[j]
        dp = ndp

    answer = sum(dp)
    print(answer)

if __name__ == "__main__":
    solve()
