Problem 174: Counting the Number of “Hollow” Square Laminae That Can Form One, Two, Three, … Distinct Arrangements

Mathematical Development

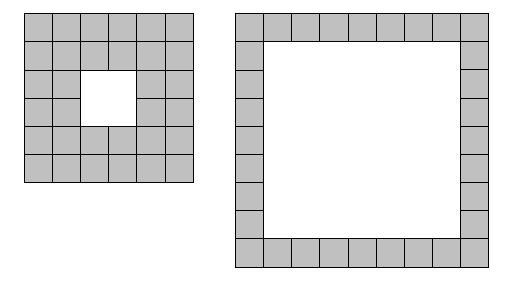

Theorem 1. (Tile-count parameterization.) Every hollow square lamina with outer side $a$, inner side $b$, $a \equiv b \pmod{2}$, $a \geq b + 2$, $b \geq 1$, uses $t = 4k(b + k)$ tiles where $k = (a - b)/2 \geq 1$. In particular, $4 \mid t$.

Proof. From Problem 173, $t = a^2 - b^2 = (a - b)(a + b)$. Setting $a - b = 2k$ gives $a + b = 2b + 2k$, so $t = 2k(2b + 2k) = 4k(b + k)$. Since $k \geq 1$ and $b + k \geq 2$, we have $t \geq 8$ and $4 \mid t$. $\square$

Theorem 2. (Reduction to divisor counting.) Write $t = 4m$. Then $N(t)$ equals the number of divisors $k$ of $m$ satisfying $1 \leq k < \sqrt{m}$.

Proof. Setting $q = b + k$, the equation $m = k \cdot q$ must hold with $q > k$ (since $b = q - k \geq 1$ requires $q > k$). Each such factorization corresponds to a unique lamina. The number of ordered pairs $(k, q)$ with $kq = m$ and $k < q$ is the number of divisors of $m$ strictly less than $\sqrt{m}$:

which in both cases equals $|\{k : k \mid m,\; k < \sqrt{m}\}|$. $\square$

Lemma 1. (Divisor sieve.) For $M = N/4$, the array $N[1 \ldots M]$ can be computed in $O(M \log M)$ time by iterating $k = 1, 2, \ldots, \lfloor\sqrt{M}\rfloor$ and for each $k$, incrementing $N[kq]$ for all $q = k + 1, k + 2, \ldots$ with $kq \leq M$.

Proof. Each pair $(k, q)$ with $k < q$ and $kq = m$ is visited exactly once. The total number of pairs is $\sum_{k=1}^{\lfloor\sqrt{M}\rfloor} \lfloor M/k - k \rfloor \leq \sum_{k=1}^{\lfloor\sqrt{M}\rfloor} M/k = O(M \log \sqrt{M}) = O(M \log M)$. $\square$

Editorial

The divisor reformulation turns the problem into a counting sieve on $m=t/4$. For each factor pair $m=kq$ with $k<q$, there is exactly one hollow lamina using $t=4m$ tiles. So instead of generating laminae geometrically, the program counts how many strict factor pairs each $m$ has.

The implementation loops over the smaller factor $k$ and increments every product $kq$ with $q>k$. After that sieve pass, the array entry for $m$ is exactly $N(4m)$. The final answer is obtained by counting how many of those entries fall between 1 and 10 inclusive.

Pseudocode

Let $M = 10^6 / 4$ and create an array of zero counts for $1 \le m \le M$.

For each possible smaller factor $k$:
    let the larger factor start at $k+1$ so that only strict pairs are counted.
    For every $q$ with $kq \le M$:
        increment the counter of $m = kq$.

After all factor pairs are processed:
    scan the array once more,
    and count how many entries lie between 1 and 10 inclusive.

Return that count.

Complexity Analysis

• Time: $O(M \log M)$ where $M = 250{,}000$. The inner loop total is bounded by $\sum_{k=1}^{500} M/k \approx M \ln 500 \approx 1.55 \times 10^6$.
• Space: $O(M) = O(250{,}000)$ for the count array.

Answer

#include <bits/stdc++.h>
using namespace std;

int main(){
    // Problem 174: Count values of t <= 10^6 with 1 <= N(t) <= 10
    // where N(t) = number of hollow square laminae with exactly t tiles.
    // t = 4*m, N(t) = number of divisors k of m with k < sqrt(m).

    const int LIMIT = 1000000;
    const int M = LIMIT / 4; // 250000

    vector<int> N(M + 1, 0);

    // For each k, count factorizations m = k * q with k < q
    for(int k = 1; (long long)k * k < M; k++){
        for(int q = k + 1; (long long)k * q <= M; q++){
            N[k * q]++;
        }
    }

    int ans = 0;
    for(int m = 1; m <= M; m++){
        if(N[m] >= 1 && N[m] <= 10) ans++;
    }

    cout << ans << endl;
    return 0;
}

"""
Problem 174: Counting the Number of "Hollow" Square Laminae
That Can Form One, Two, Three, ... Distinct Arrangements

N(t) = number of laminae with exactly t tiles.
Count values of t <= 10^6 with 1 <= N(t) <= 10.

Key insight: t = 4m, and N(t) = number of divisors k of m with k < sqrt(m).
"""

import math

def solve():
    LIMIT = 1_000_000
    M = LIMIT // 4  # 250000

    N = [0] * (M + 1)

    # Sieve: for each k, find all q > k with k*q <= M
    k = 1
    while k * k < M:
        q = k + 1
        while k * q <= M:
            N[k * q] += 1
            q += 1
        k += 1

    ans = sum(1 for m in range(1, M + 1) if 1 <= N[m] <= 10)
    print(ans)

if __name__ == "__main__":
    solve()
